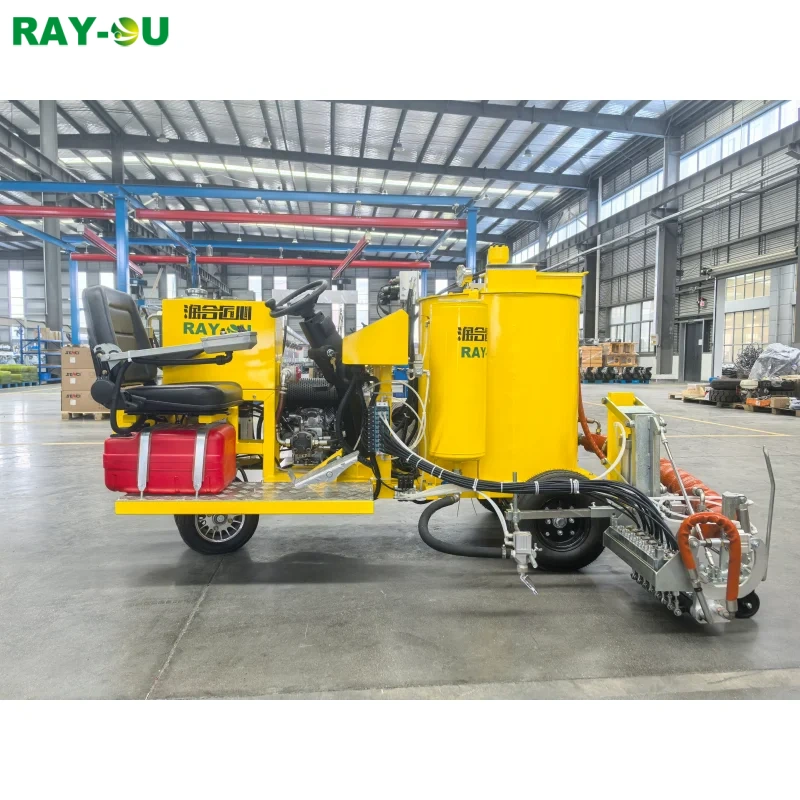

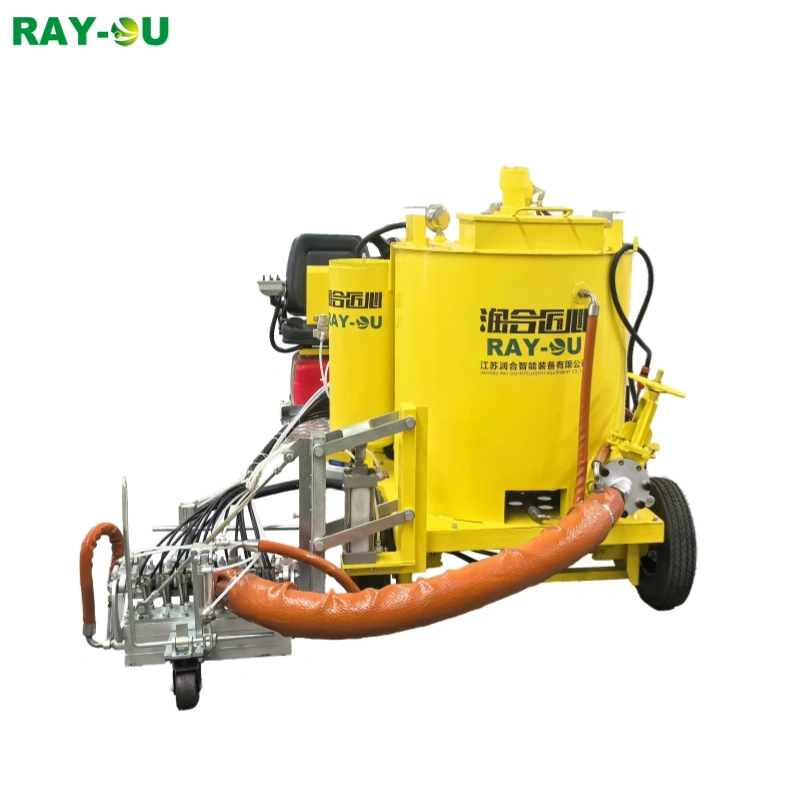

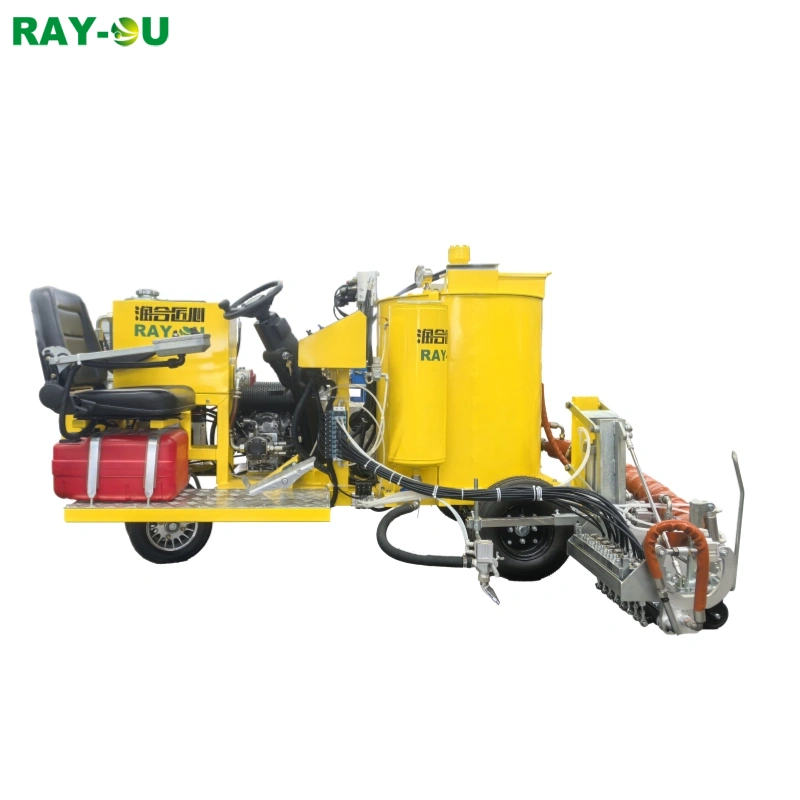

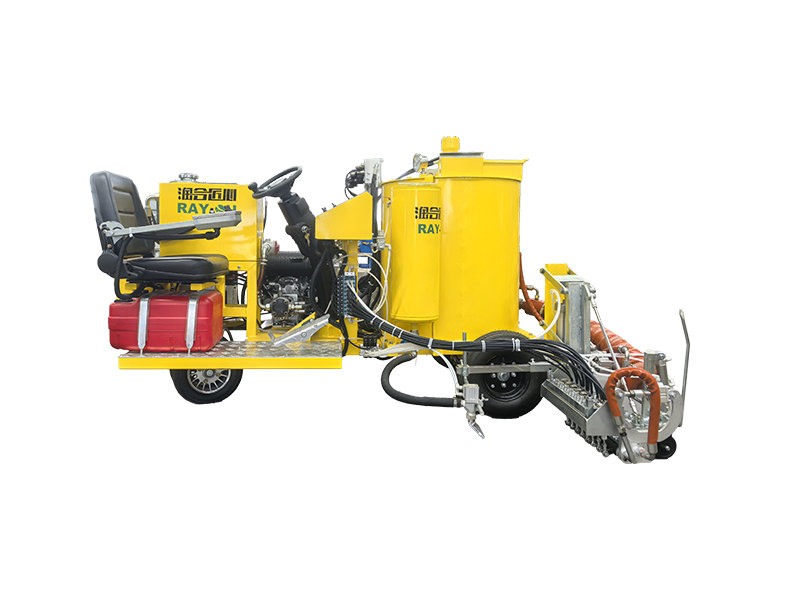

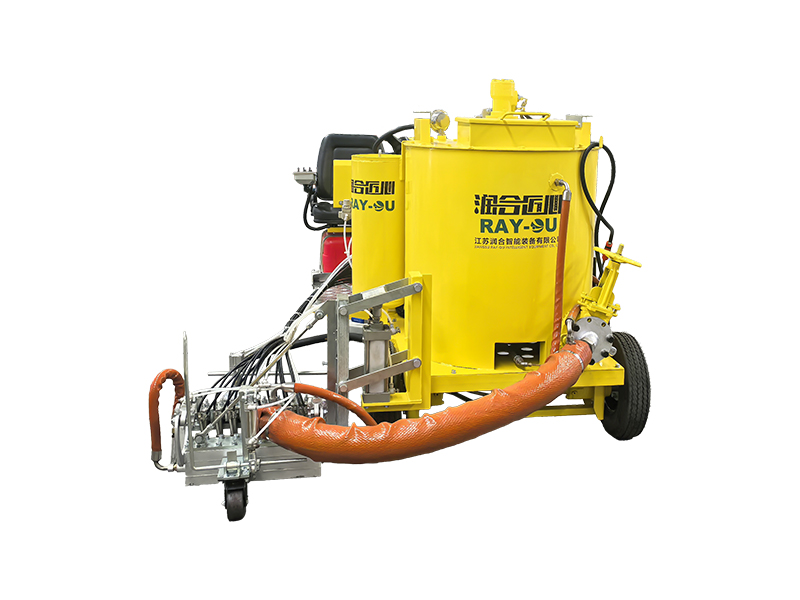

Compact self-propelled hot-melt extrusion line marking machine with a small turning radius. The cab integrates line marking settings and machine controls, delivering ample power for uphill construction and high work efficiency. The entire machine undergoes high-standard anti-corrosion treatment.

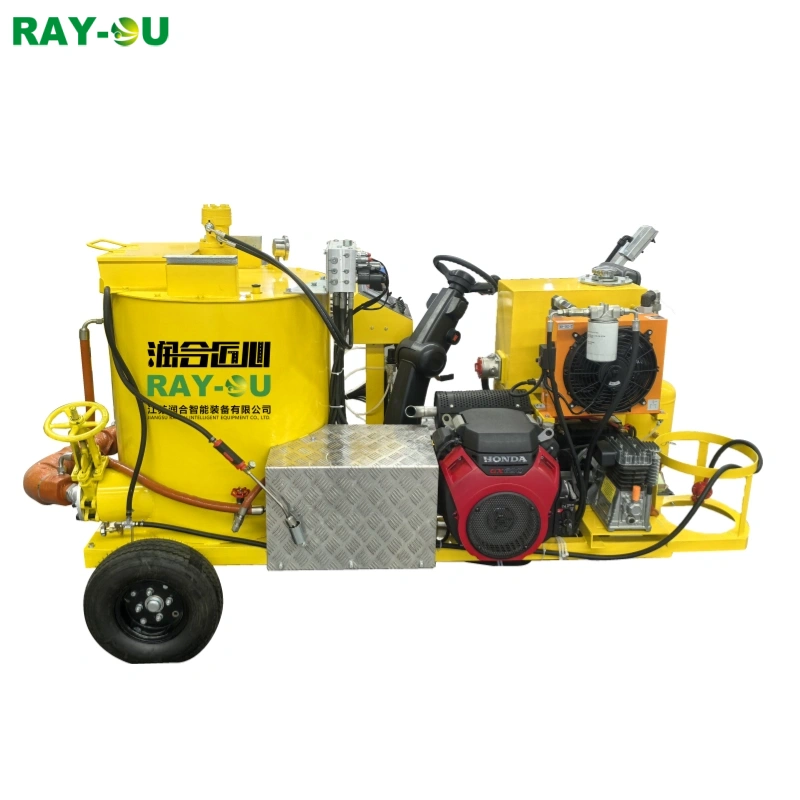

Gasoline engine | Honda GX690(13kW) |
Hydraulic system | Danfoss |
Travel speed | 0-10km/h |
Max gradeability | 11° |
Air compressor | 0.18m³/min (0.8MPa) |
Heating method | LPG burner heating with thermal oil circulation for temperature maintenance |
Paint tank capacity | 180L (360kg) |
Glass bead tank | 27L pressurized tank |
Line width | Standard 20cm width Each 5cm section constitutes one control unit, totaling 4 control units |
Marking mode | Standard extrusion line and automatic dash line |

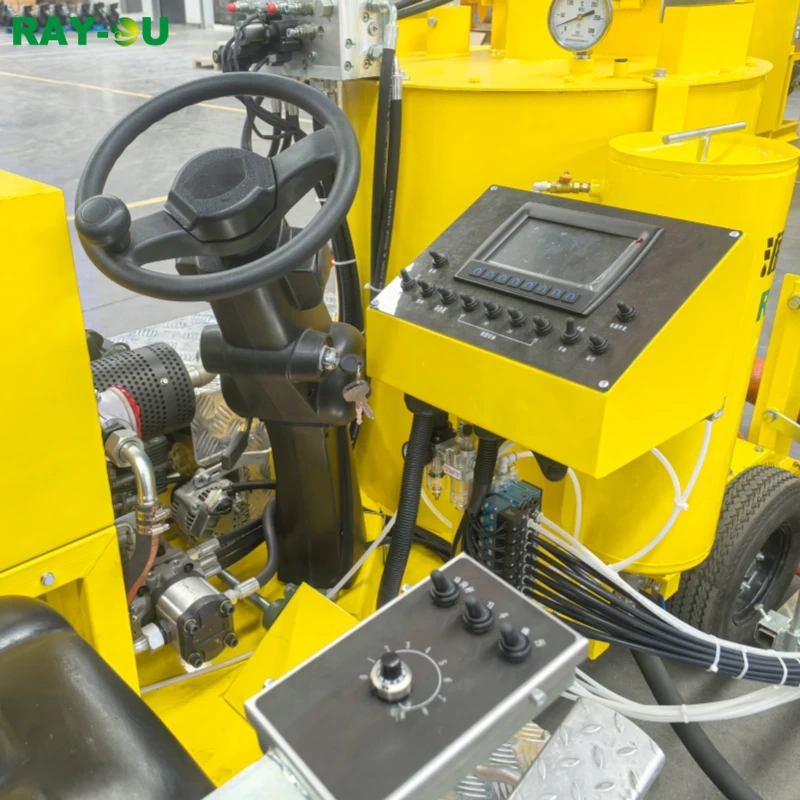

Marking setting | Set the marking parameters on the computer panel in the cab |
Dimension(LWH) | 2400×1350×1450mm |
Net weight | 800kg |
