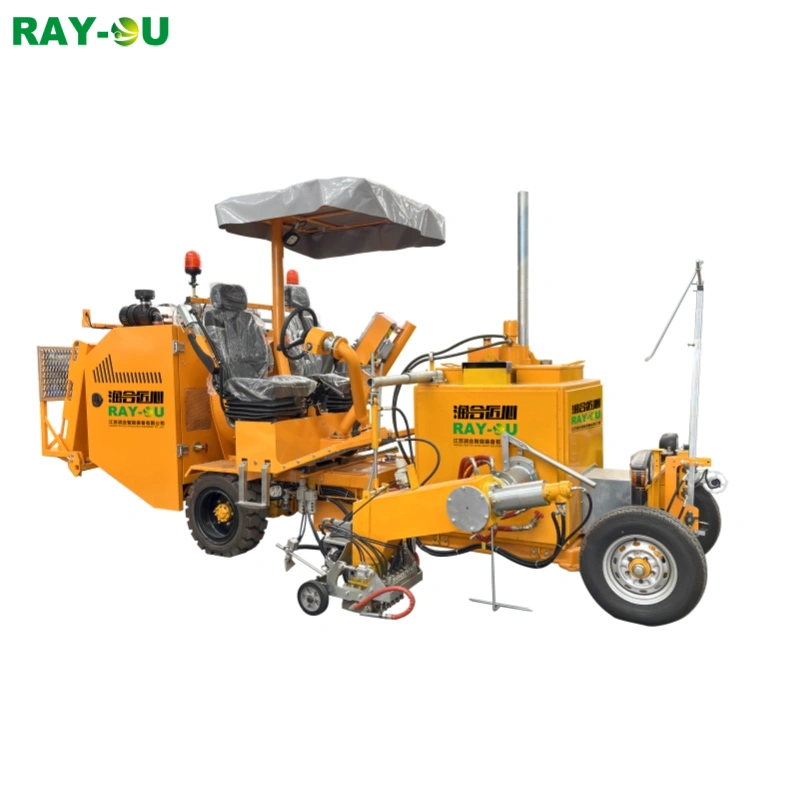

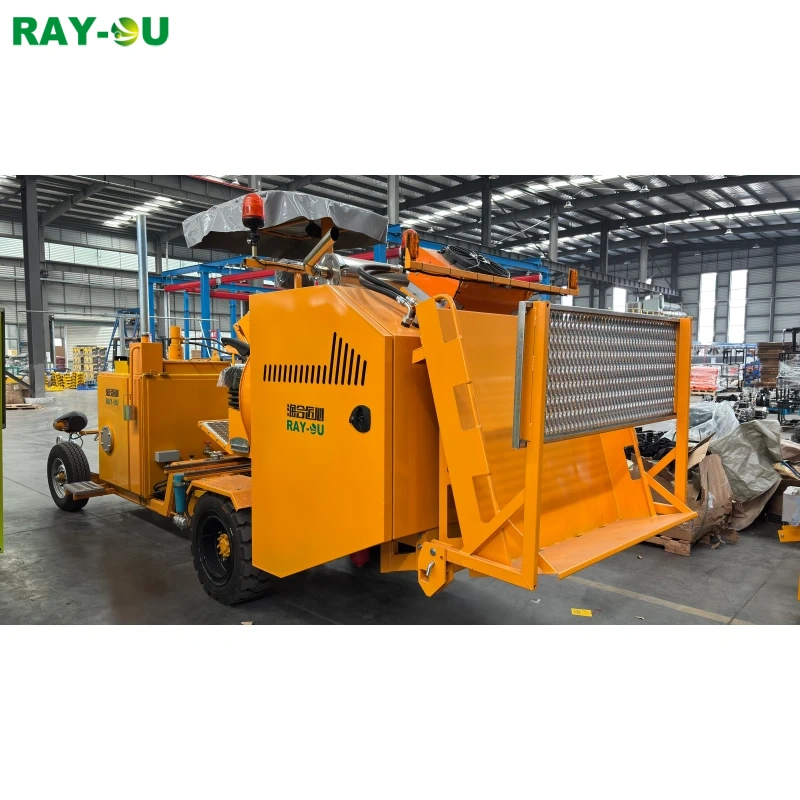

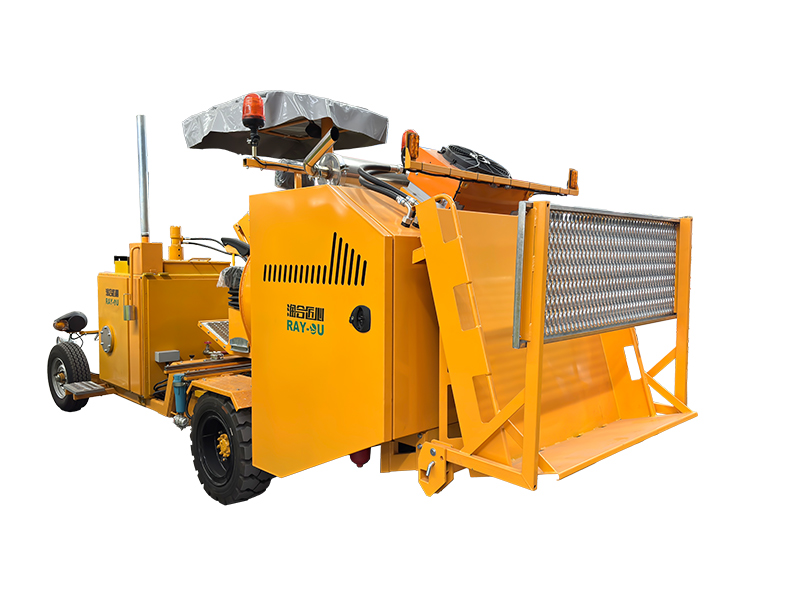

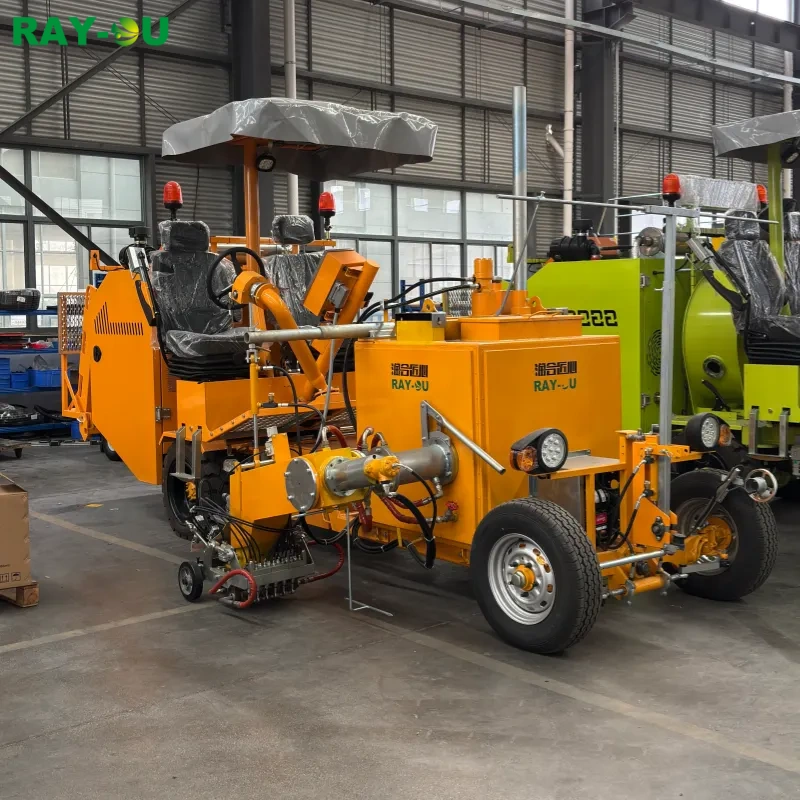

Enhanced power, increased thermoplastic coating capacity, and superior gradeability. The cab integrates line marking settings and machine controls. Key components are sourced from world-renowned brands, and the entire machine undergoes high-standard anti-corrosion treatment.
Engine | Kubota 67.6kW four-cylinder water-cooled diesel engine |
Hydraulic system | Danfoss |
Travel speed | 0-10km/h |
Max gradeability | 11° |
Air compressor | 0.49m³/min at 0.8MPa |
Heating method | Beckett diesel burner, thermal oil circulation insulation, automatic temperature control |
Paint tank capacity | 500L (1000kg) |
Glass bead tank | 150L pressurized tank |
Optional line width | 30,40,45, 50cm Each 5cm on the extruder constitutes one control unit. |
Marking mode | Flat lines, checkerboard lines, staircase lines, piano lines, and other pre-programmed markings |
Marking setting | Select the line mode on the computer panel and set the marking parameters |
Construction efficiency | 450 m²/h |
Dimension(LWH) | 6300 × 2200 × 2750 mm |
Net weight | 4300 kg |
