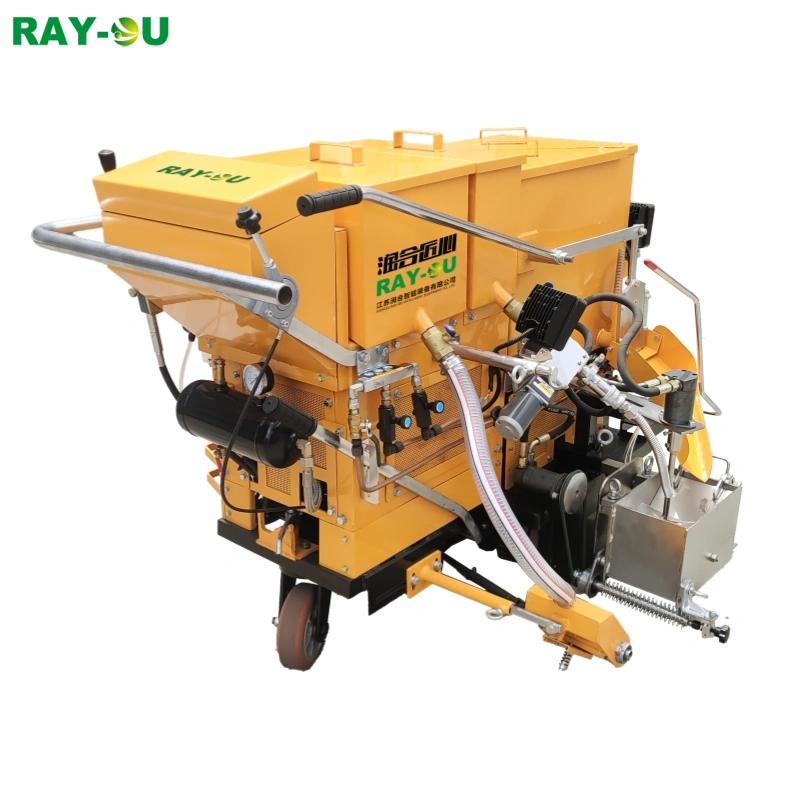

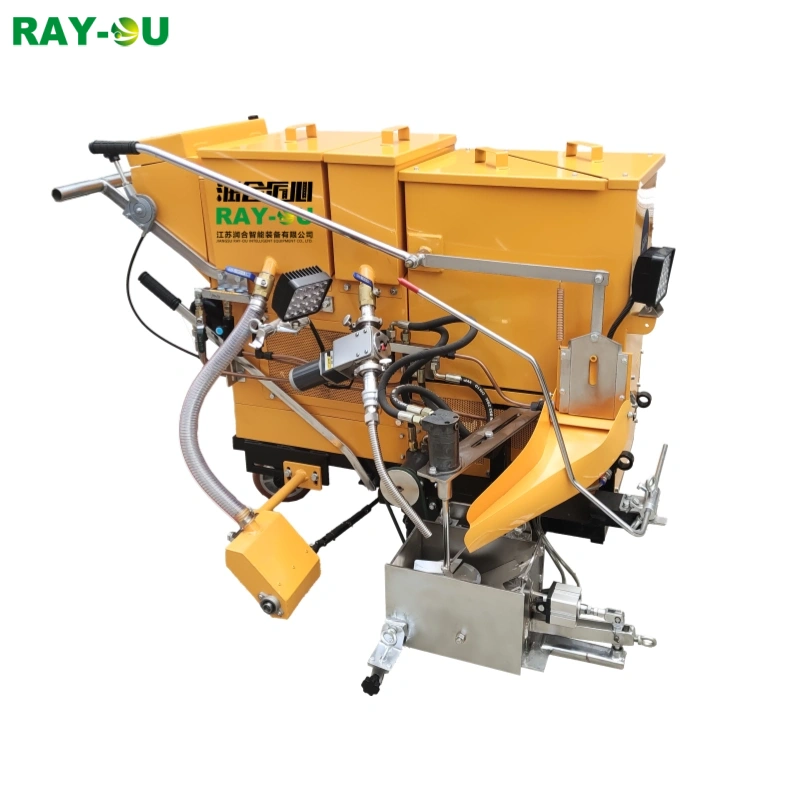

Self-propelled multi-functional dual-component line marking machine, utilizing a 1:1 mixing ratio, integrates traditional flat lines, rib lines, and splashed lines
Marking mode | Flat lines, rib lines, splashed lines |
Marking setting | Onboard computer |
Gasoline engine | Honda GX200(6.5HP) |
Drive method | Hydraulic motor with continuously variable transmission (CVT) |
Travel speed | Forward 10km/h, reverse 6km/h, gradeability 15° |
Mixing ratio | 1:1 |
Paint bucket capacity | 40L |
Glass bead tank capacity | 14L |
Hardener tank capacity | 5L |
Protrusion height | 0-10mm |
Optional line width | 15,20,30,40,45cm |
Screed box | Scraping and rib line two-in-one box,swing box |
Stirring of the screed box | Hydraulic stirring |
Dimension(LWH) | 1425×1320×1330mm |
Net weight | 276kg |
