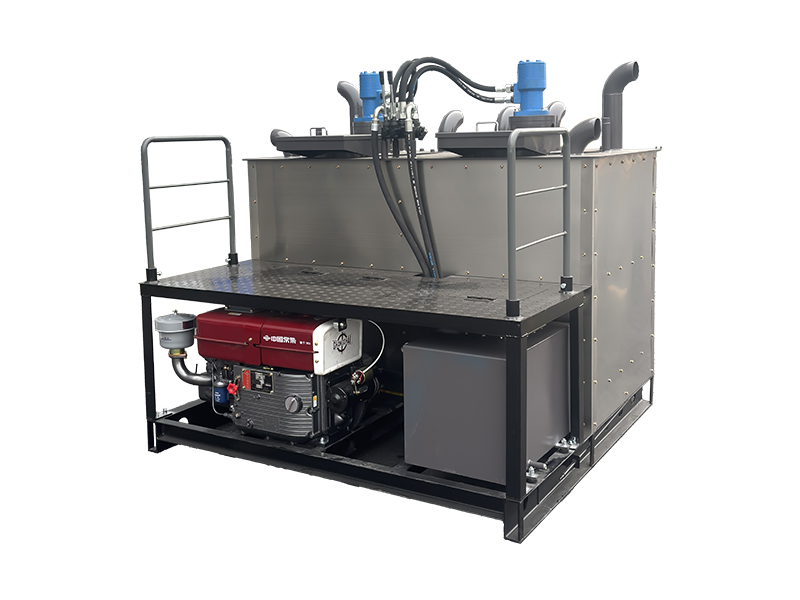

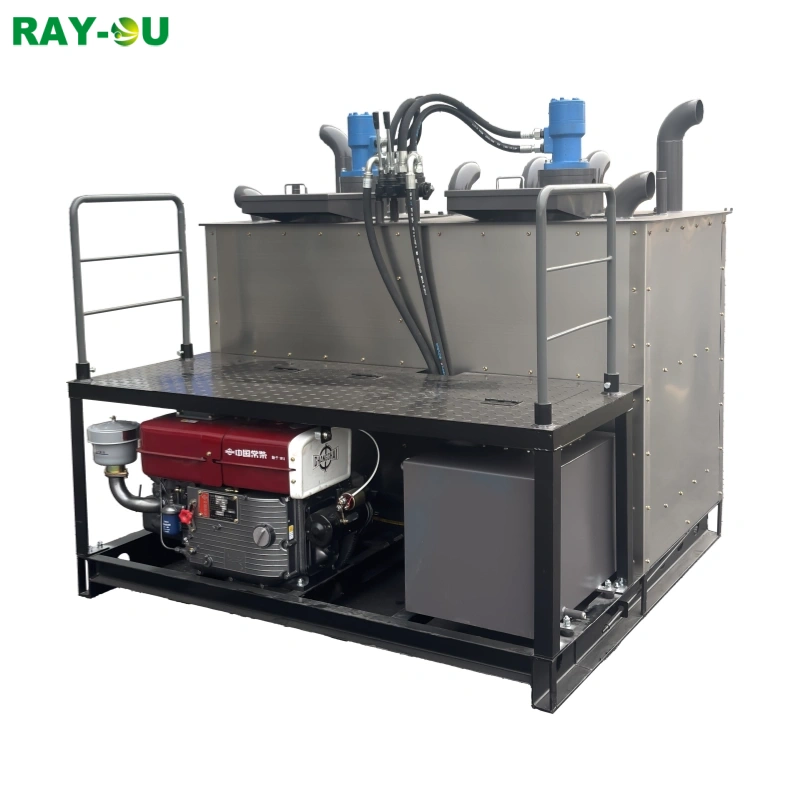

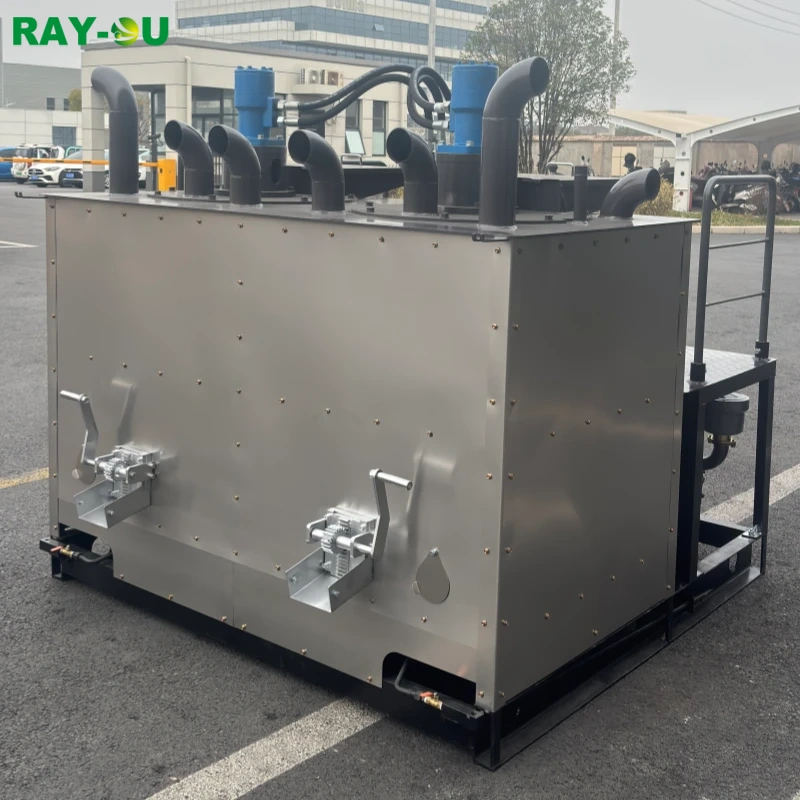

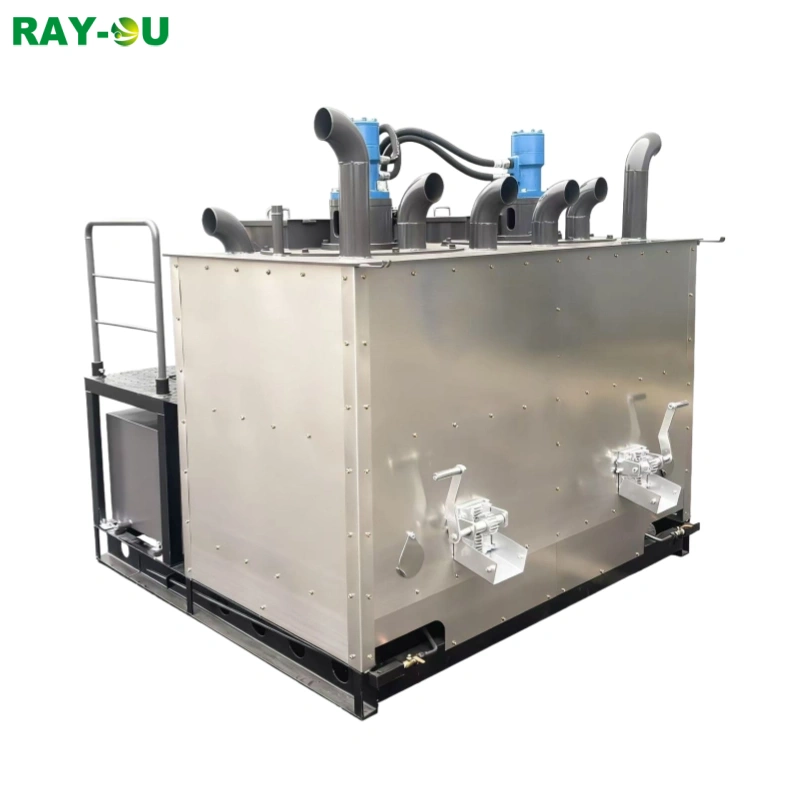

Common equipment for thermoplastic road marking construction, used to melt the paint. Features a direct-injection gas burner and a hydraulic stirring system with safety protection.
Model | DCHP-1000G | DCHP-1200G |
Engine | Changchai ZS1105 18HP electric start water-cooled diesel engine | |
Heating stove | Gas direct-injection stove | |
Mixing system | Integrated hydraulic control valve, forward/reverse mixing with overload protection | |
External structure | Frame-type construction, 1.2mm stainless steel outer shell | |
Internal structure | Two independent enclosed combustion chambers are equipped with thermal insulation layers | |
Paint tank | 2 x 500kg capacity, suspended installation | 2 x 600kg capacity, suspended installation |
Bottom material | 10mm high-carbon alloy steel | |
Dimension(LWH) | 1800×1750×1550mm | 1800×1750×1650mm |
Net weight | 1070kg | 1100 kg |
